LED Lamp Controller up to 100 lamps - RJ14 / RJ12 - TIMER / TEMP. & HUMIDITY CONTROL

0–10V LED Controller for grow lights – Precise Lighting Control for Indoor Growing

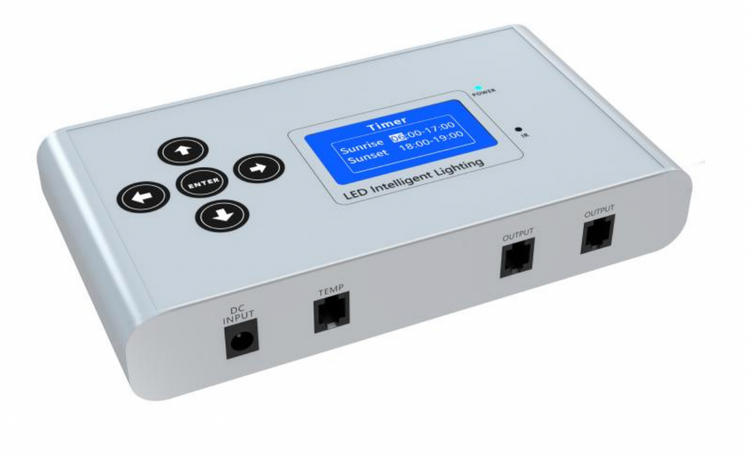

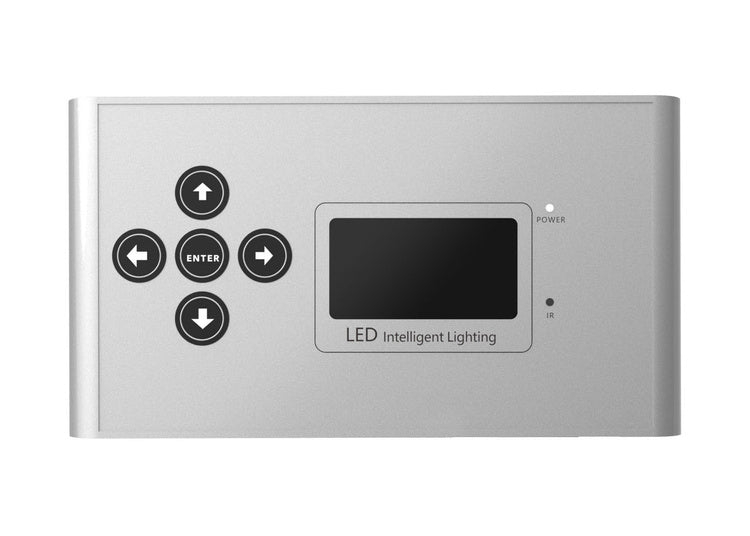

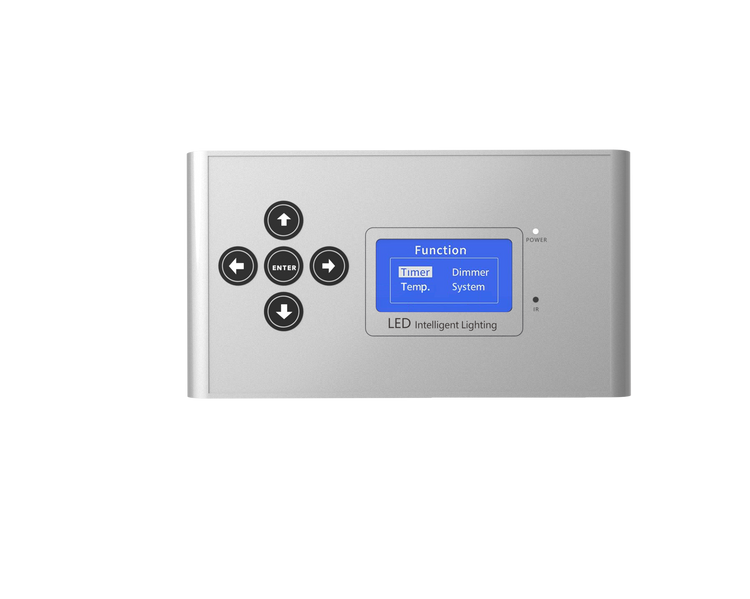

The 0–10V Controller is an advanced device designed to manage lighting systems in indoor cultivation setups. It allows for smooth dimming of light intensity from 0 to 100%, ensuring optimal growing conditions and improved energy efficiency.

Key Features:

• Precision Dimming: Accurate power regulation with up to 1% precision.

• Supports up to 100 Drivers: Connect up to 50 drivers per port, with a total of 100 drivers controlled by a single unit.

• Automatic Dimming and Shutoff: Temperature-controlled operation within the range of 0 to 80°C (32–176°F).

• Display and Temperature Sensor: Comes with a 10-meter cable and sensor for monitoring grow room conditions.

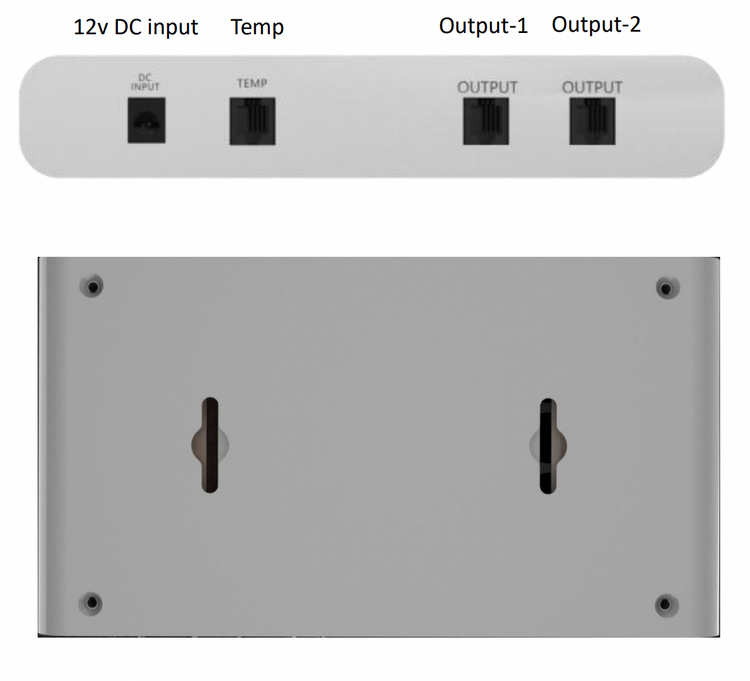

• High Compatibility: 0–10V outputs (RJ12 and RJ11 ports) suitable for most LED lighting systems.

• Compatible with LUCKYGROW X-SERIES and LUCKYGROW FLEX SERIES

• Power Supply Included: AC 110–240V input with DC 12V/1A output.

Technical Specifications:

• Model: 0–10V Controller

• Device Dimensions: 176 x 96 x 31 mm

• Package Dimensions: 290 x 270 x 80 mm

• Net/Gross Weight: 0.35 kg / 1.3 kg

• Protection Rating: IP20 (for indoor use)

• Operating Temperature: -25°C to +35°C

Package Contents:

• 1 × 0–10V Controller

• 1 × 12V Power Adapter with 1.5 m Cable

• 1 × Temperature Sensor Cable (10 m)

• 2 × 0–10V Signal Cables (5 m each)

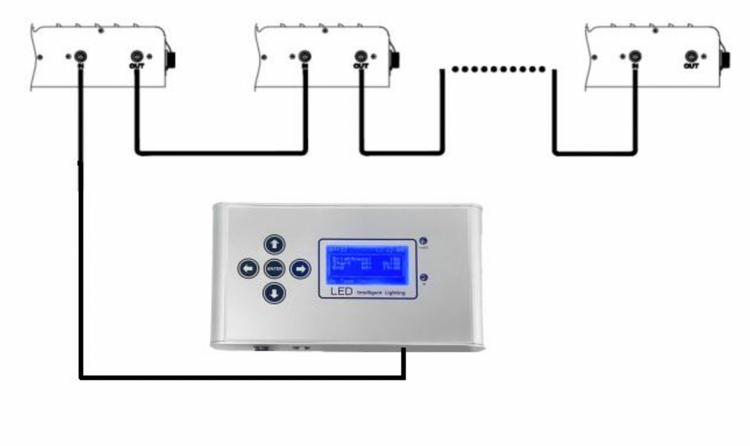

This controller is easy to mount and operate - simply attach it to the wall and follow the included instructions. Thanks to its automatic temperature-based dimming and the ability to daisy-chain multiple LED fixtures, it's a perfect solution for both professional and hobbyist indoor growers.
